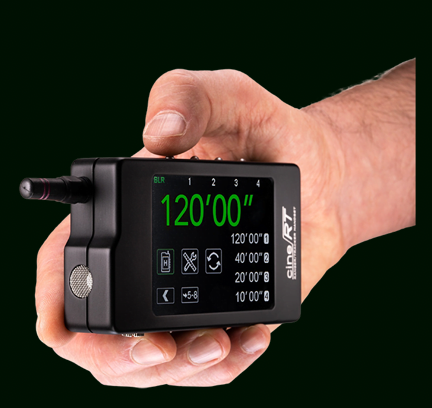

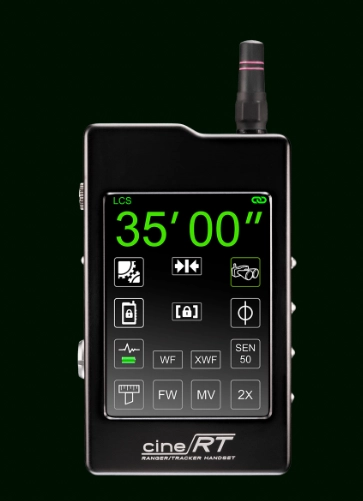

Complete your focus station by adding the HANDSET CONTROL UNIT. The HANDSET is the system’s command center and contains a pressure-sensitive touchscreen to display several distance readout VIEW MODES and to access system-wide operational settings.
COMPREHENSIVE READOUTS
Adjust SENSITIVITY to read larger or smaller objects and/or surface details, or use the tried and true general purpose default developed in the field. Customize your rangefinder range by setting LIMITS to ignore unwanted foreground and background object readings, or engage a LOCKOUT to remove mid-range obstacles. View the Rangefinder and one BUG, or two BUGs simultaneously, in 2X VIEW. Toggle seamlessly between all active distance sources and assign LCS focus tracking rack speeds with the SOURCE SWITCHER.
STORING MARKS
Did you know the HANDSET doubles as a 120’ (36.5m) invisible tape measure to quickly collect and store focus marks without pulling a physical tape or targeting a point laser? When using the ARRI Focusbug License your collected marks will appear automatically on the Hi-5. Marks can also be collected directly with the rangefinder or BUG transmitters. Use the MARKS EDITOR to compensate for last-minute subject or camera repositions without needing to remeasure or calculate new marks. Use the headphone jack to hear your mark cues in real time with FOCUS WHISPER, or see your marks in real time on a graphical distance display in MARKS VIEW.
Features & Specifications
- System remote controller
- Monitor two subjects simultaneously
- Easily switchable sources
- Customizable near, mid and long range limits
- Integrated 120' (36.5m) tape measure
- Collect and edit focus marks
- Real-time graphical subject monitoring
- Real-time audio mark cues
- Real-time ultrasonic reflection display
- Adjustable screen brightness, high contrast display mode and screen lock
- Rechargeable Lithium Polymer battery
- Power save mode & shutdown timers
- Interchangeable mounting hardware
